Klotz CAT-6A kabelhaspel met 100m Ram Cat-6 PUR Audio/video kabel zwart met Neutrik RJ45 EtherCon pluggen

Klotz CAT-6A kabelhaspel met 100m Ram Cat-6 PUR Audio/video kabel zwart met Neutrik RJ45 EtherCon pluggen

Artikelnummer: KLRCBEEW100

570,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • Gratis verzending v.a. €350,-

Productbeschrijving

Double shielded data cable RamCAT with solid conductors, PE-X element and PUR outer jacket.
Thanks to AWG24 solid conductors it allows EtherSound up to 120 metres.
The suitability for mobile use is reached by the special construction with a cross-shaped twisting element and durable PUR outer jacket.
The conductor isolation of foam-Skin PE allows the assembly with the etherCON connectors.

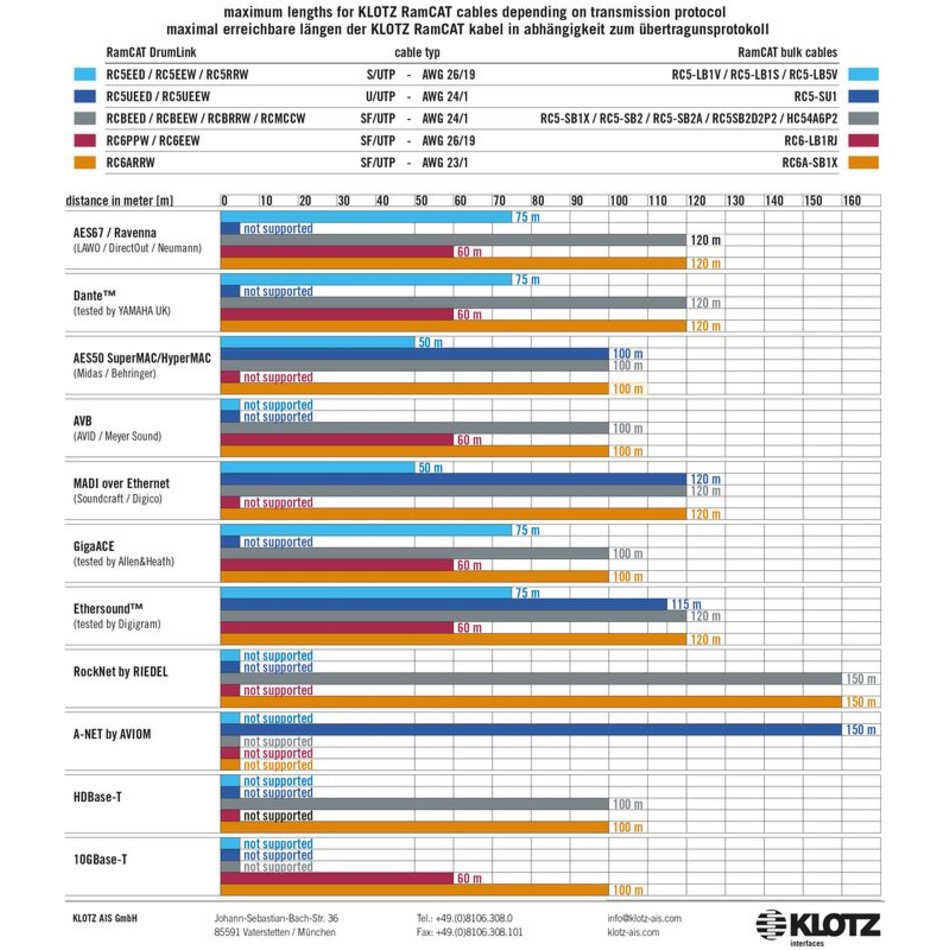

– EtherSound tested by Digigram up to 120m
– MADI tested by Soundcraft / Studer up to 120 m including two breakout panels and safety margin
– GLD and iLive ACE/dSnake tested by Allen & Heath up to 120m
– Dante tested by Yamaha UK up to 120 m, recommended up to 100m – incl. extended error safety margin at 1 Gbit/s



Specificaties

– cable typ RC5SB
– 4 x 2x 0,52mm (AWG 24/1) solid bare copper
– PUR jacket
– 6,6mm
– outer jacket PUR
– max. data transmission rate 100 MHz
– pinout TIA / EIA 568-B
– connector 1 etherCON M
– connector 2 etherCON M
– cable drum GT310
– 8,5kg
