DPA hoofdmicrofoon 4066F34 (EW plug) Huurperiode 1 dag

DPA hoofdmicrofoon 4066F34 (EW plug) Huurperiode 1 dag

Artikelnummer: GE141001

25,00  Huurprijs per dag

Alle prijzen zijn exclusief 21% btw
Voeg toe aan offerte-aanvraag

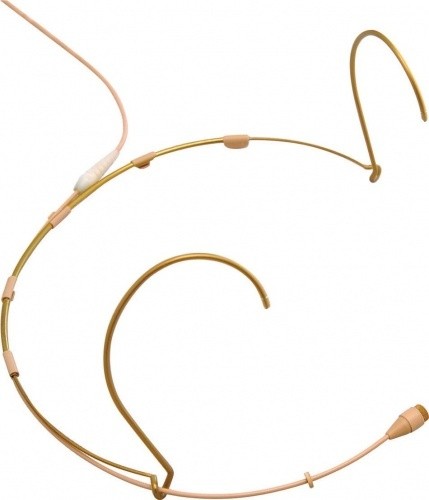

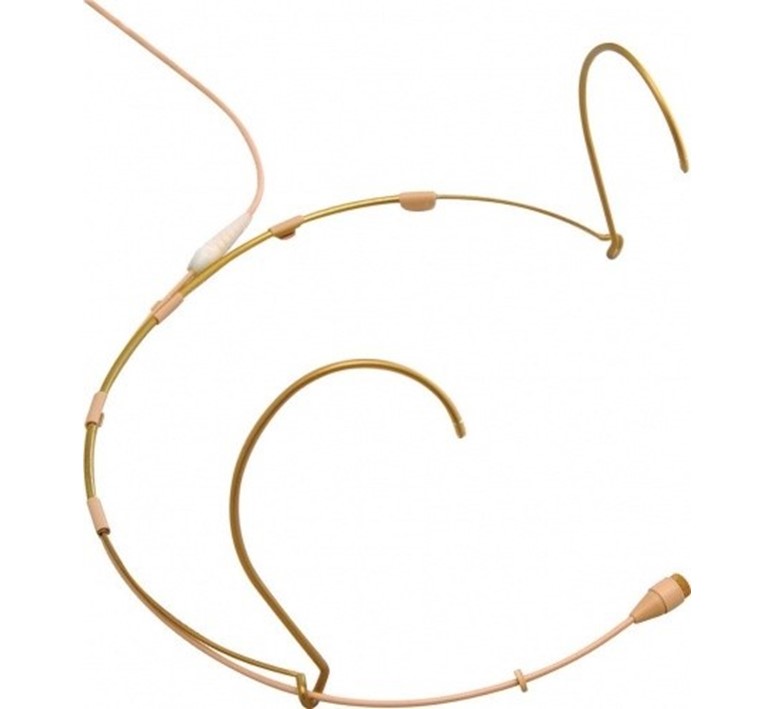

The 4066 is a flexible miniature microphone solution that features very easy and fast adjustment.
The headband construction is unique in design, offering both left and right mounting and color change.
It is also possible to use the MMB4066 Miniature Microphone Boom, Omnidirectional, separately, in applications where the headband is not needed.

The 4066 offers a clean and transparent sound quality with lots of headroom.

Attention has been paid to the humidity problems that often occur in theatrical applications.
A double vent protection system, a drop stopper on the microphone boom, together with water resistant materials inside the microphone, makes it more than difficult for the humidity to cause the headband Microphone to fail.
The headband surface is matte gold plated and headband earhooks are covered with a silicon hose.

The sensitivity is 6 mV/Pa to match the level of the human voice to the general input sensitivity of most wireless transmitters.
If powered correctly the microphone will be able to handle sound pressure levels up to 144 dB SPL before clipping occurs.

A wide range of connection adapters makes it possible to use the 4066 with most of the professional wireless systems available plus 48 V phantom XLR connection.

4066 is delivered with five foam windscreens.

This is the chosen headband for theaters on Broadway and West End.

Please note that the microphone comes with 1 High Boost and 1 Soft Boost Miniature Grid.
It is available in three colors (black, beige, brown) and three sizes (small, normal, large).

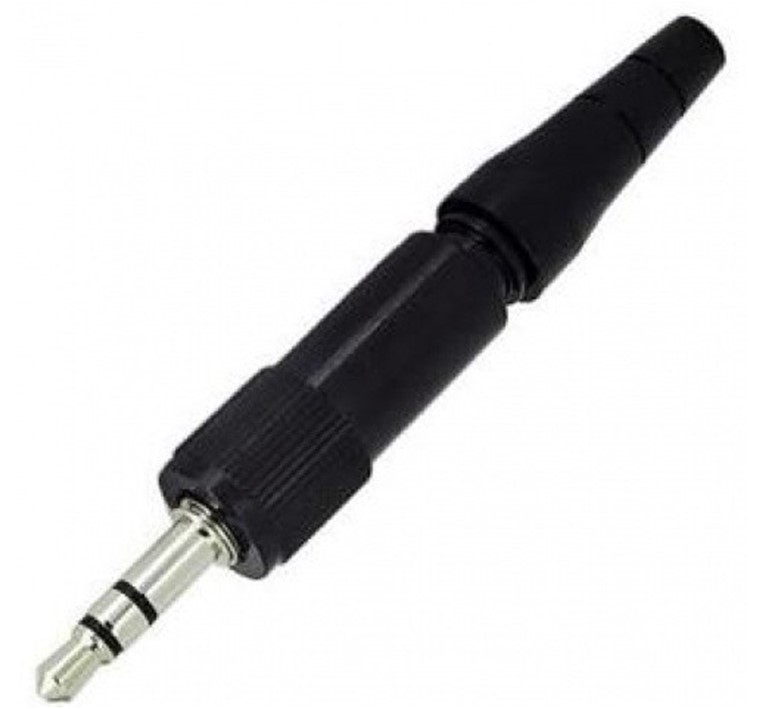

Deze microfoon is leverbaar met de volgende connectoren:
Nummer: Omschrijving:
M MicroDot
03 Sennheiser SK 50/SK 250/SK 3063/SK 5012, Trantec SD7000 Digital Wireless
04 Audio Ltd. Tx 2000/Tx 2020/Tx 2040
08 Sony WRT820/WRT860/WRT8
10 Shure PGX1, SLX1, ULX1, TOA WM4300
12 Lectrosonics M185
17 AKG PT 60/80/81/400/4000 Samson UT1L, VT2L
19 Sony Freedom WRT 805
21 ATW-T101 (U100), Lectrosonics UHF systems (low level)
34 Sennheiser Evolution/G2/G3/X2 Digital Wireless Systems
Leverbaar in de volgende kleuren:
B = Zwart, C = Chocolade, F = Beige, W = Wit

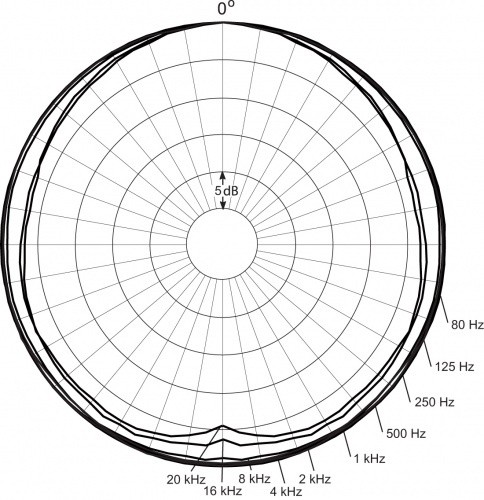

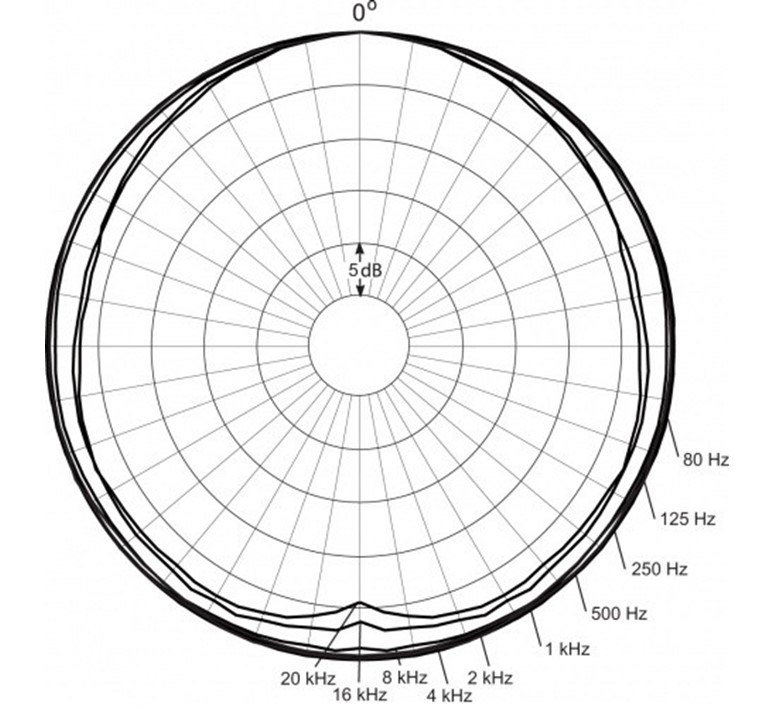

– Omnidirectional
– Principle of operation: Pressure
– Cartridge type: Pre-polarized condenser element with vertical diaphragm
– Frequency range, +/- 2 dB: Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz.
– High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz.
– Sensitivity, nominal, +/- 3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
– Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))
– Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
– S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68 dB (A)
– Total harmonic distortion (THD): < 1 % THD up to 123 dB SPL peak;
< 1 % THD up to 120 -dB SPL RMS sine
– Dynamic range: Typ. 97 dB
– Max. SPL, peak before clipping: 144 dB
– Output impedance: 30 – 40 ohm
– Cable drive capability: Up to 300 m
– Power supply: For wireless systems: Min. 5 V – max. 50 V through DPA adapter.
With – DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/- 4 V for full performance.
– Connector: MicroDot
– Color: Black, brown or beige
– Microphone weight: 14 g incl. cable and MicroDot connector
– Microphone diameter: 5.4 mm
– Cable length: 1.2 m
– Cable diameter: 1.6 mm
– Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
– Operating temperature range: -10 to 45C
