DAP Digitale DMX kabel 2p 110 ohm DIG-110 zwart per rol 100m

Productbeschrijving

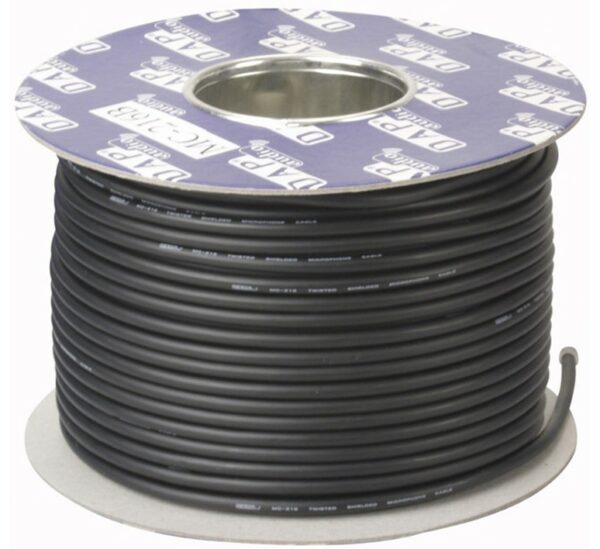

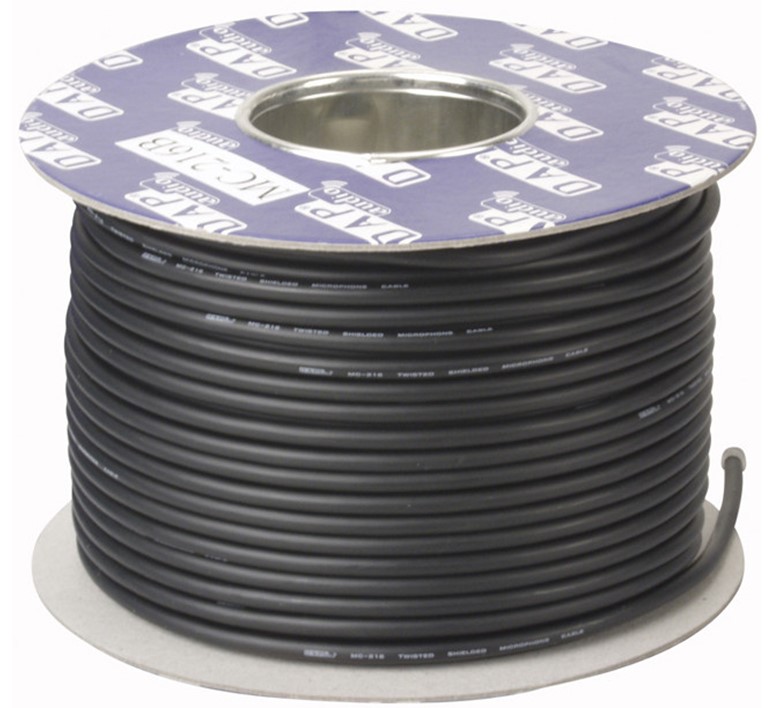

Zwarte digitale 110-Ohm kabel, 100 m op een spoel

Specificaties

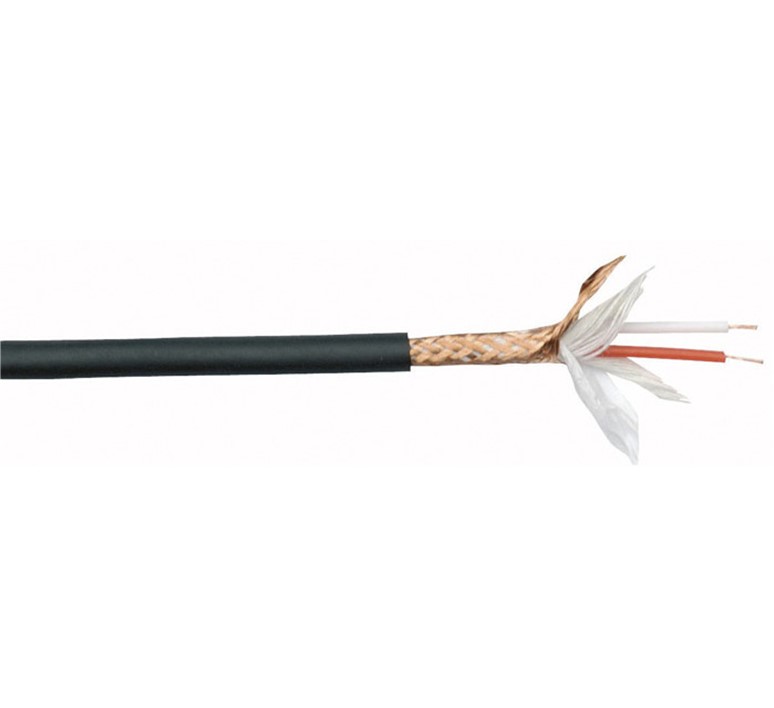

– conductor drains OFC 18x 0,10mm
– conductor insulation FPE red + white
– conductor insulation 1,9mm
– filler material paper + cotton yarn
– 1st shield OFC braided 128x 0,12
– outer isolation PVC black + blue
– outer isolation 6mm
– conductor resistance 130 Ohm/km
– shield resistance 12,5 Ohm/km
– capacity inner conductor 35 pF/m
– capacity inner shield/inner cond 52 pF/m
– working temperature min/max -20 – 60C
– working voltage overflash 30V
– nom impedance 110 Ohm
