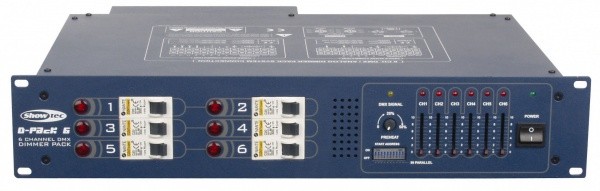

D-Pack 6 Classic 6x 10A dimmer DMX & 0-10

Productbeschrijving

DMX 512 or 0-10V controlled 6ch dimmingpack with automatic fuses.
This model is a 6 channel dimmer pack and provides a variety of functions, including DMX, ANALOG and MANUAL control modes, dimming, preheat control, overheat and overload protection, and DMX 512 address allowing to control 6 channel output simultaneously.
The circuit breaker will cut off power supply automatically when load current exceeds 20A.

Specificaties

– LED indicator and dimmer-fader for each channel
– preheat 0-50% adjustable
– 3 phase input and 10A per channel
– AC 230V/50-60Hz(CE)
– power output 10A per channel max. total 60A max.(CE)
– fuse 20A circuit breaker
– dimensions 482 x 370 x 85mm
– weight 7,1kg
