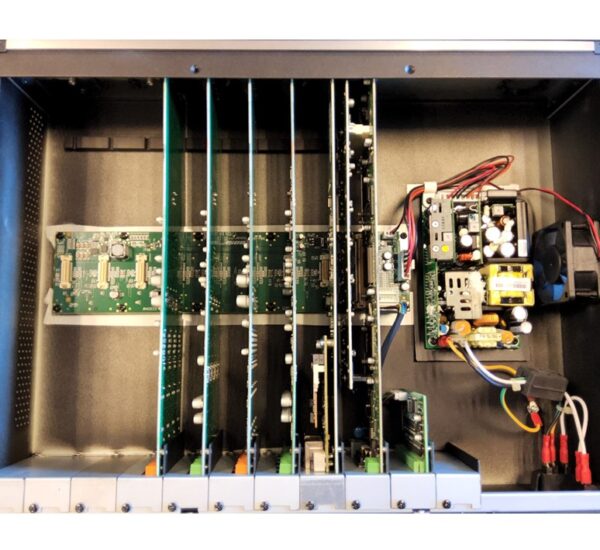

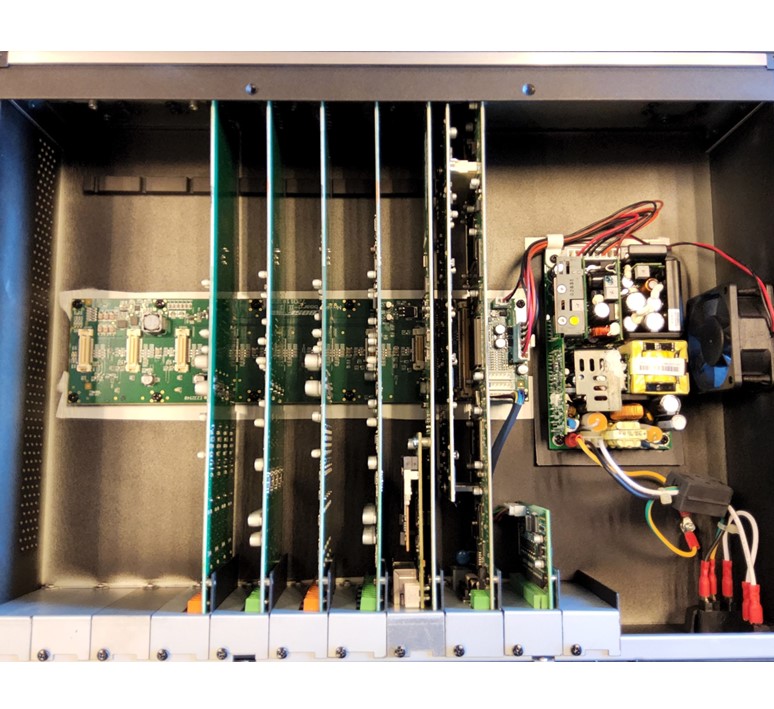

Bose ControlSpace ESP-00-II systeem zonder in/uitgangskaarten Refurbished met nieuwe voeding en laatste versie software!

Productbeschrijving

The ControlSpace ESP-00 Series II engineered sound processor offers high-quality signal processing through a flexible audio platform. Install up to eight analog and/or digital audio expansion cards to create customized audio systems.
Onboard connectivity includes Ethernet, RS-232, expandable GPIO, and support for elegant Bose control centers and volume controls.

Specificaties

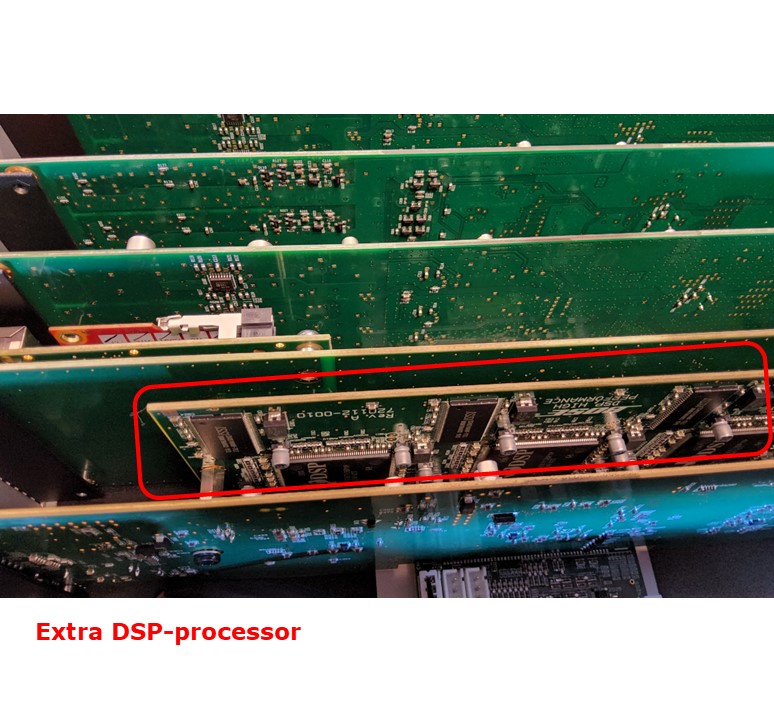

– signal processor four 32-bit floating-point digital signal processors, 200 MHz
– maximum calculation 6,4 GIPS / 4.8 GFLOPS
– delay 288 s
– audio latency 860 μs (analog in to analog out)
– A/D and D/A converters 24-bit
– sample Rate 48 kHz
– inputs (control) 8 analog or digital inputs, 5,1 kOhm internal pull-up resistor to 5 V

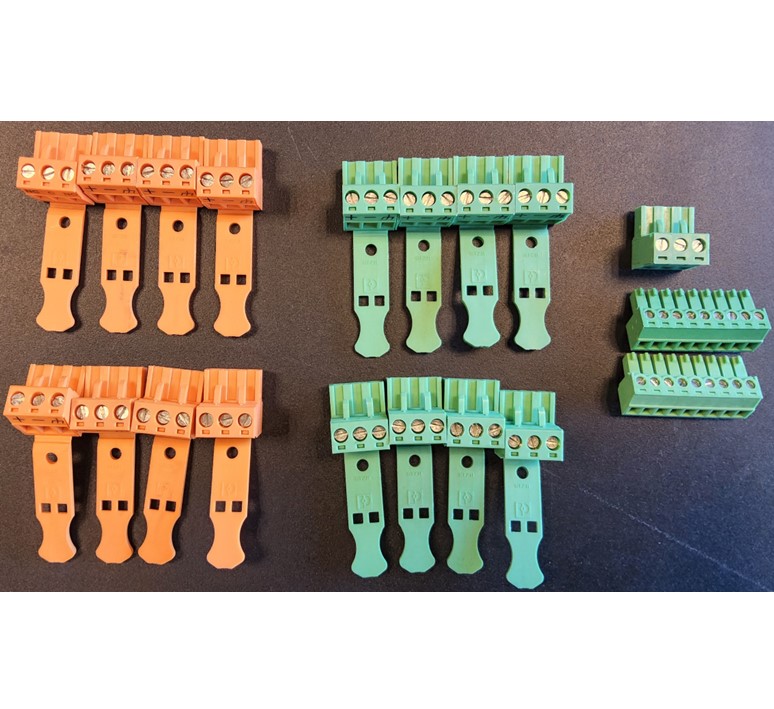

– 3,81 mm Euroblock, 9-pin
– analog input voltage range 0V to 3,3V (maximum 5V)
– digital input voltage range 0V to 3,3V (threshold voltage = 1,6V)
– outputs (control) 8 digital outputs, 3,81 mm Euroblock, 9-pin
– output voltage high 7,5V (open circuit), 2,5V @ 10 mA, Low: < 1V @ 100 mA, push-pull

Indicators and controls:

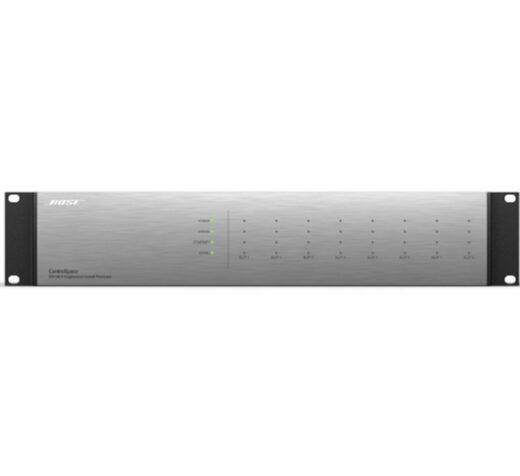

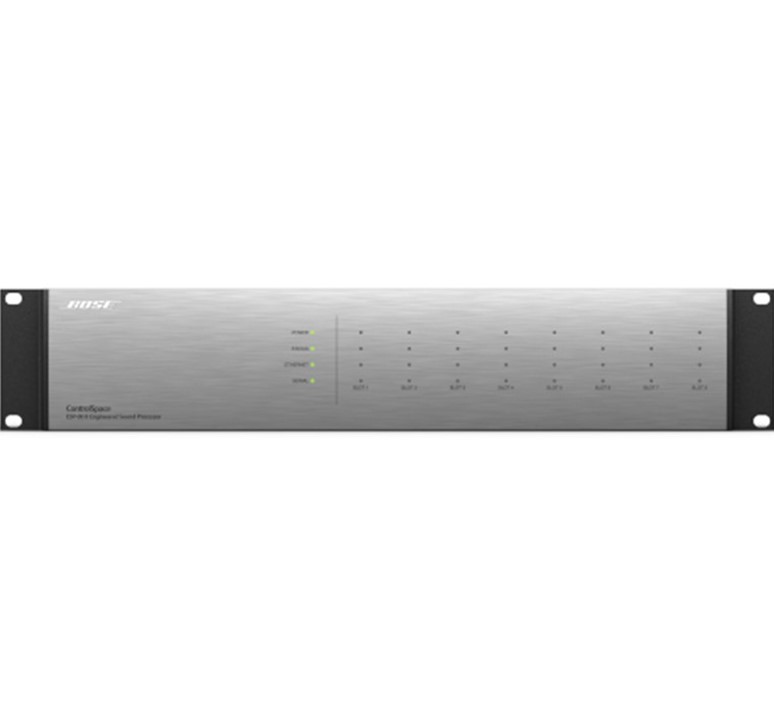

– Led status indicators power, status, ethernet/serial (RS-232 + CC-16)
– audio signal indication green (-60 to -20 dBFS), yellow (-20 to -2 dBFS), red (-2 to 0 dBFS)

Electrical specifications:
– mains voltage 85VAC-264 VAC 50/60 Hz with PFC
– AC power consumption < 35VA typical / < 70VA max at < 35C ambient
– mains connector IEC 60320-C14 (inlet)
– power dissipation 70W (239 BTU, 60 kcal)

Physical:
– dimensions 88mm H x 483mm W x 331mm D
– net weight 4,9kg
– operating temperature 0C – 40C
– cooling system internal fan
– PC configuration software ControlSpace Designer software
– network control ethernet (RJ-45), 10 Mb

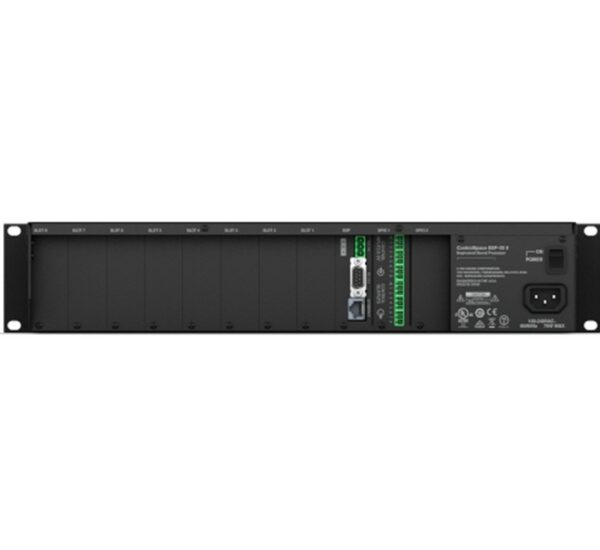

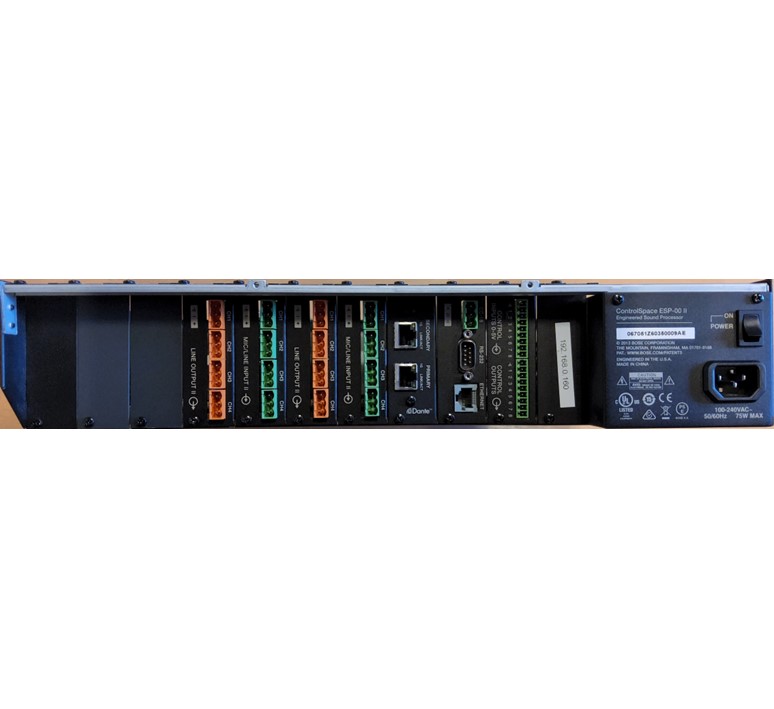

– communications ports RS-232 (DB9M, DTE), Bose CC-16 (5,08 mm Euroblock 3-pin)
– expansion slots 8 analog/digital audio, 2 GPIO (1 occupied)
– audio channel capacity 64 (bi-directional, digital and/or analog)
