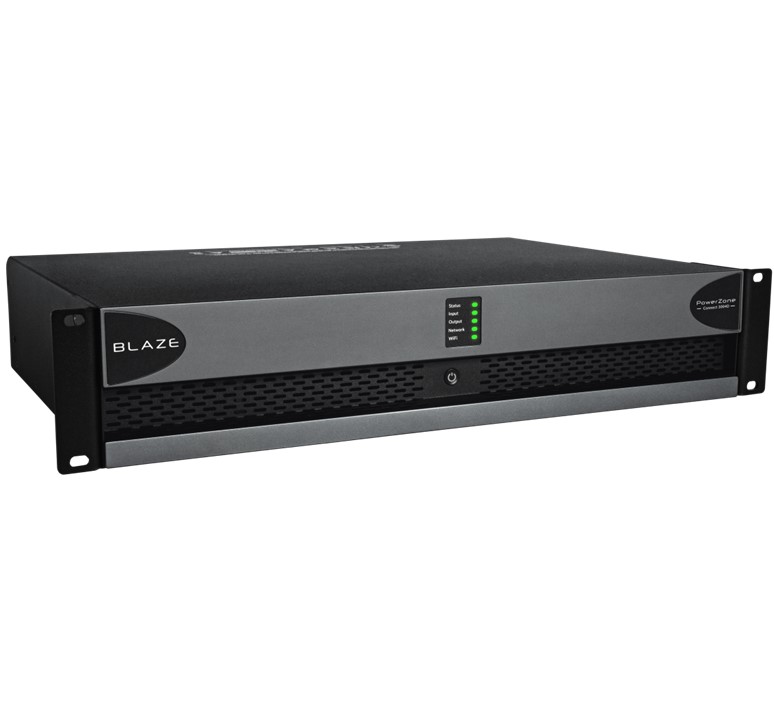

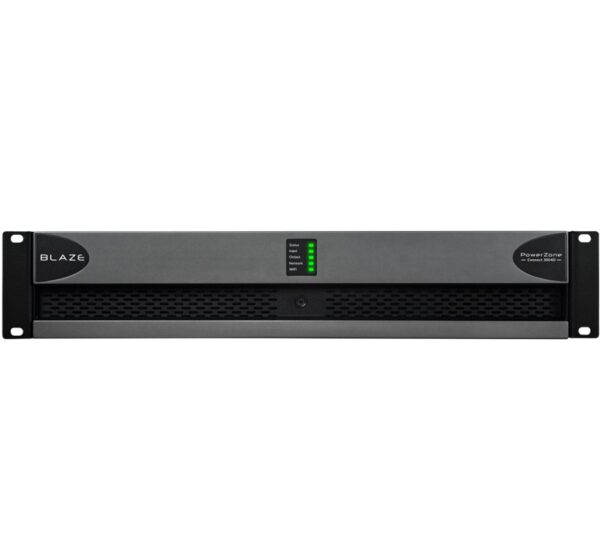

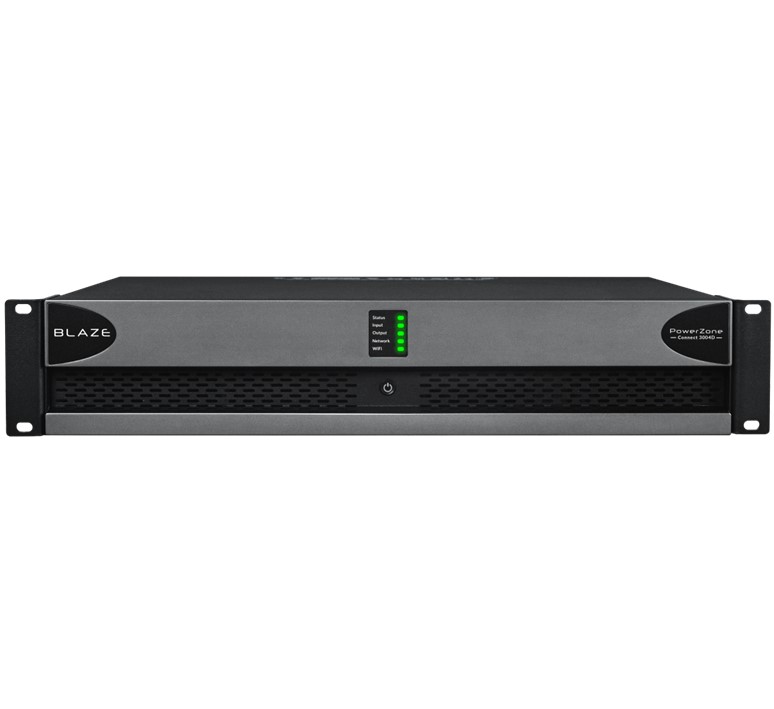

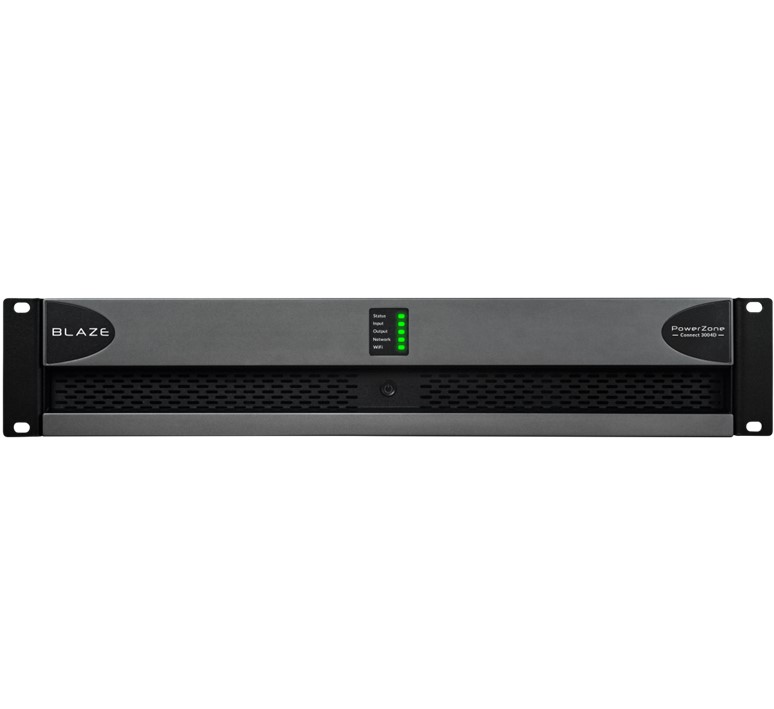

Blaze PowerZone Connect 3004D Dante 4x 750W 4 kanaals installatie DSP versterker 4-16 Ohm & 70V/100V

Blaze PowerZone Connect 3004D Dante 4x 750W 4 kanaals installatie DSP versterker 4-16 Ohm & 70V/100V

Artikelnummer: BLAZEPZ3004D

2.749,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw


  • 5 jaar garantie
  • Gratis verzending v.a. €350,-

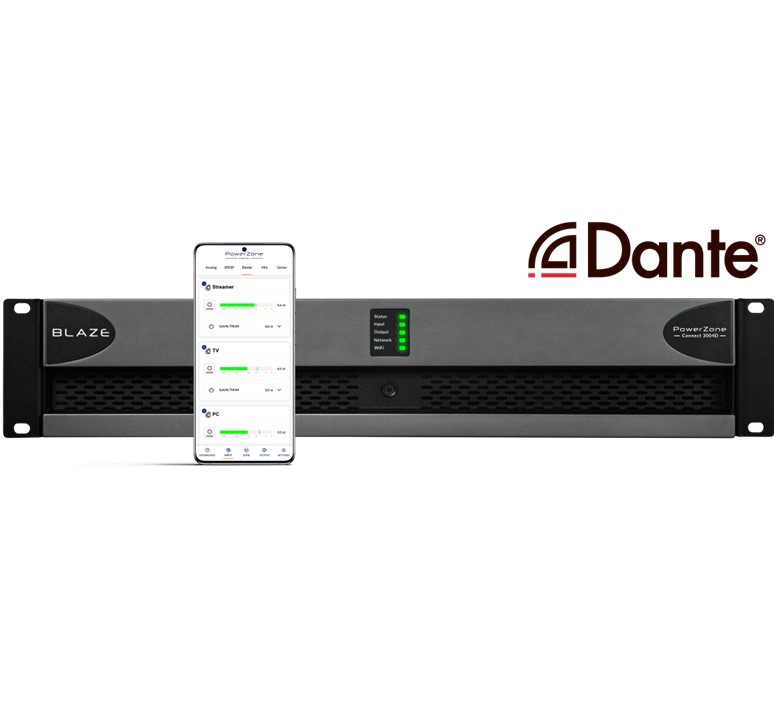

The Blaze PowerZone Connect 3004D amplifier is compatible with Audinate Dante AoIP networks and installations, empowering system installers with the advanced tools necessary to craft exceptional, high-quality audio experiences while efficiently managing multiple units over a standard Ethernet network.

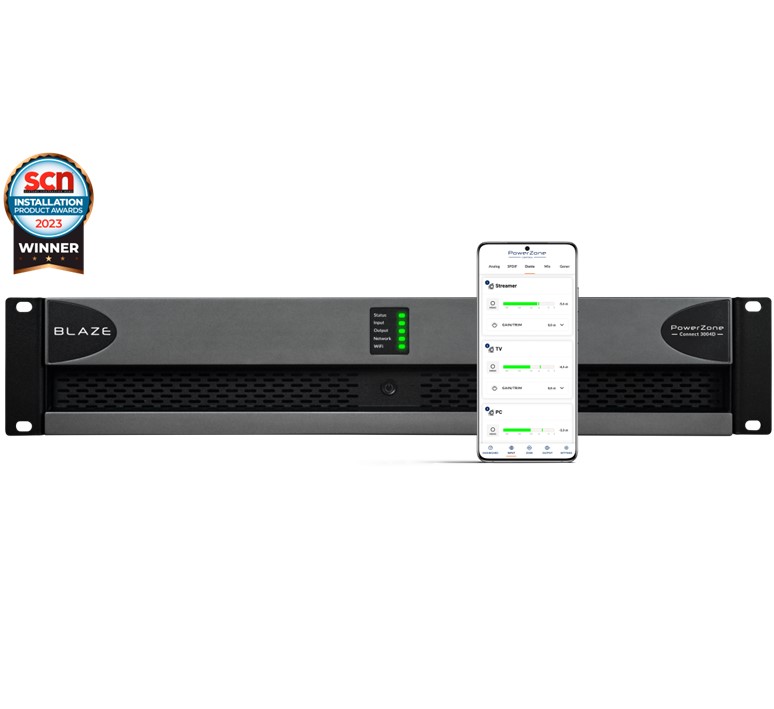

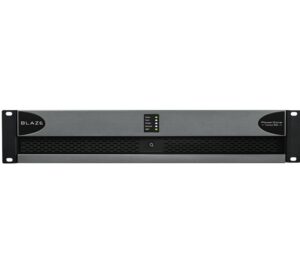

The PowerZone Connect 3004D is a solid, reliable, full rack, DSP amplifier with network connection for easy configuration and control.

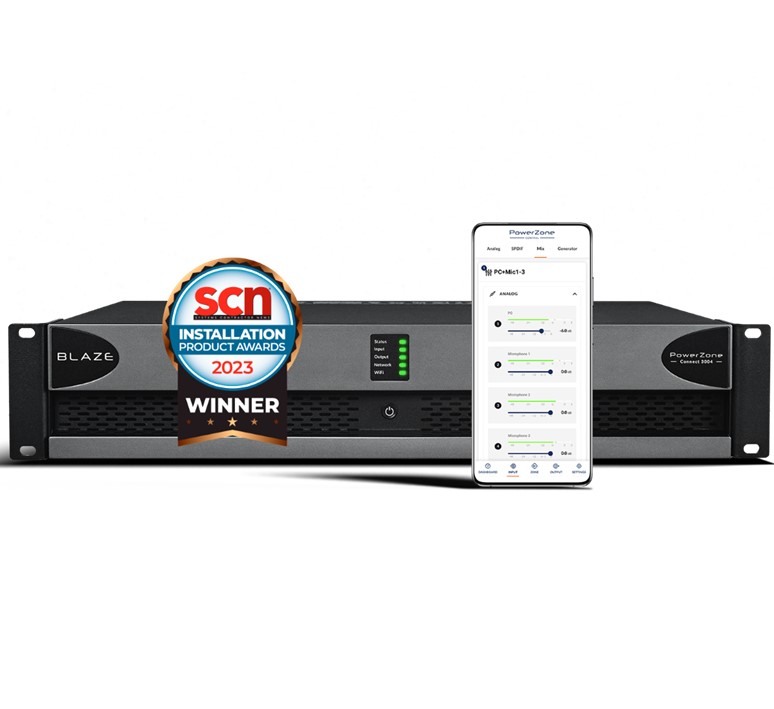

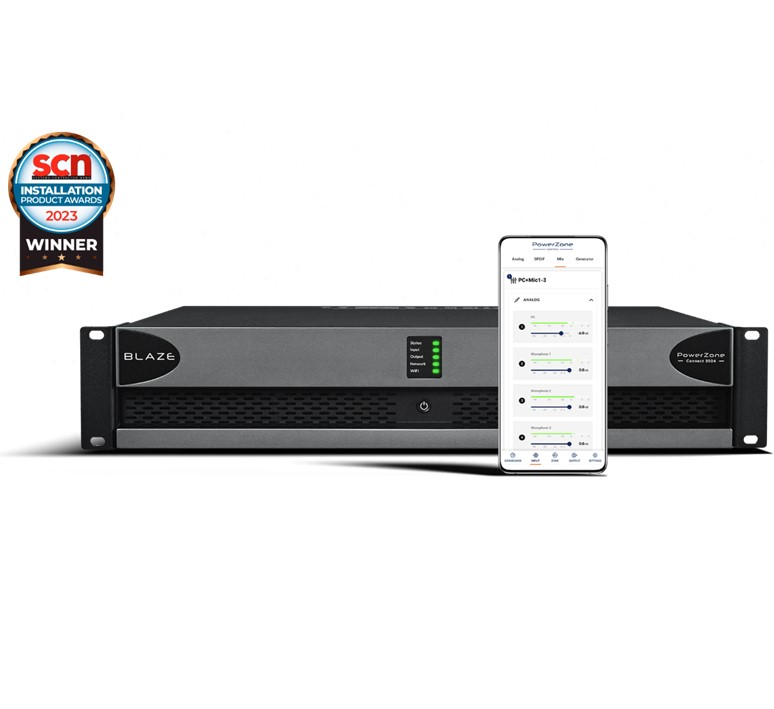

Its network can be wired or wireless and allows access to the PowerZone Control web app’s system setup and audio configuration menu.
From here you can manage sound zones, inputs/outputs, update firmware, import speaker pre-sets and access many professional EQ settings configuration takes only a few minutes and can even be set up from your phone’s browser.

– more power
– still connected
– 2U, full rack
– next level power with 4 channels up to 3000W total system power
– for bigger installs and larger locations
– a powerful extension to the PowerZone connect series of full matrix DSP amplifiers
– with the same set-up and configuration via the same PowerZone Control web app
– connect via the amps Wi-Fi, or direct via the network port
– use any device and any browser
– even set-up from your phone
– connect to the system with PowerZone Control
– configure the complete system input sources & output channels
– set up sound Zones, EQ, routing and more
– smart & connected means you can update new features with downloadable firmware updates
– install speaker EQ files, back up and restore the system settings

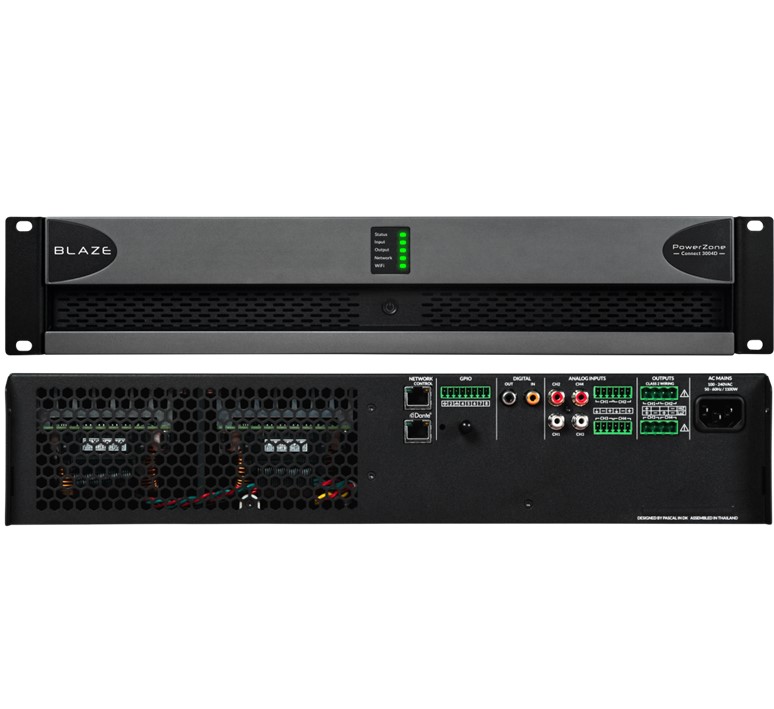

– GPIO interface enables adding of any standard remote control (potentiometer)
– connect to smart automation controllers with our 3rd Party drivers
– link multiple amps via S/PDIF (master/slave)
– Pascal’s UMAC Class D amplifier technology is inside
– with market proven ultra-reliable amplifier modules



– Dante networks
– channels 4x Lo-Z/2 x Hi-Z
– output power @ 2 Ohm 4x 750W(SE)
– output power @ 4 Ohm 4x 750W(SE)/2x 1500W(BTL)
– output power @ 8 Ohm 4x 400W(SE)/2x 1500W(BTL)
– output power @ 70V 2x 1200W(BTL)
– output power @ 100V 2x 1500W(BTL)
– total system power 3000W
– power consumption 700W
– dimensions 88 x 440 x 332mm
– weight 7,4kg
– output circuitry UMAC class D full bandwidth PWM modulator with ultra-low distortion
– output voltage 80Vp / 160Vpp (SE unloaded) 160Vp / 320Vpp (BTL unloaded)
– signal to noise-ratio > 108 dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
– THD+N (typical) < 0,05 % (20 Hz – 20 kHz, 8 Ohm load, 3 dB below rated power)
– frequency response 20 Hz – 20 kHz (+0/-0,25 dB (8 Ohm load, 3 dB below rated power)
– protection circuits short circuit -, DC -, undervoltage -, temperature – and overload protection
– power supply UREC universal mains switch mode power supply with power factor correction (PFC) and standby converter
– operating temperature 0 – 40C
– operating voltage/frequency universal mains, 100-240V, 50-60Hz
– standby consumption < 0,5W
– accessories 2x Rack ears, 4x adhesive feet
– power ratings 1% THD @ 120VAC and 230VAC
– SE conventional, single ended output mode
– BTL bridge-tied load output mode
