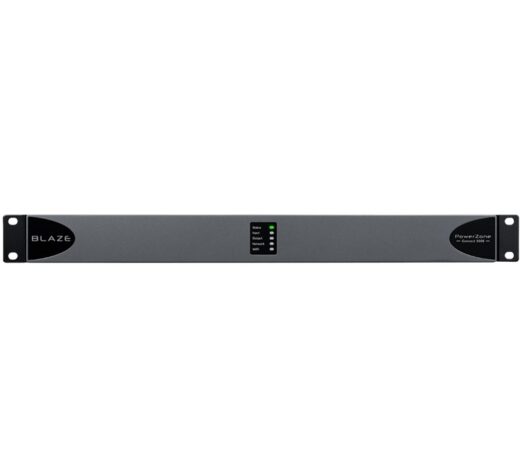

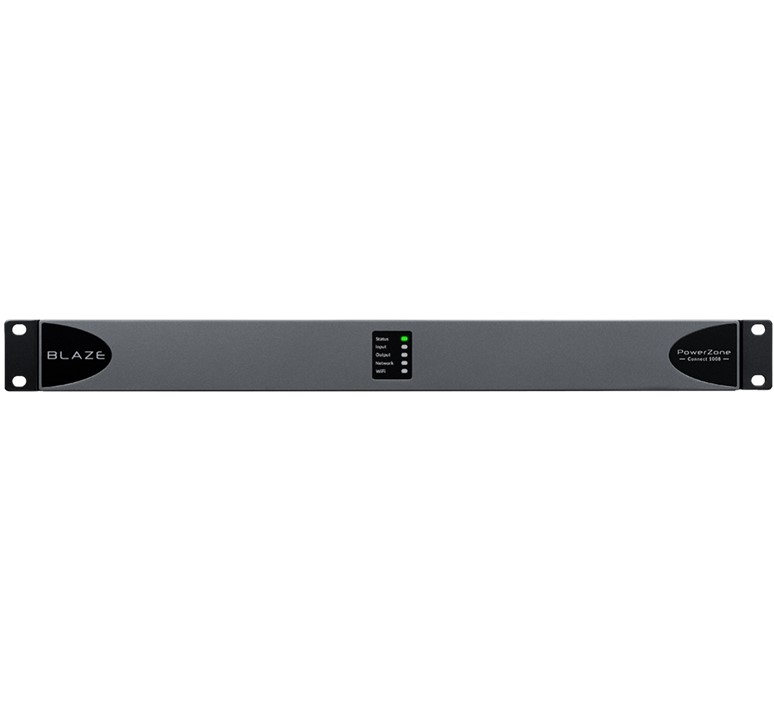

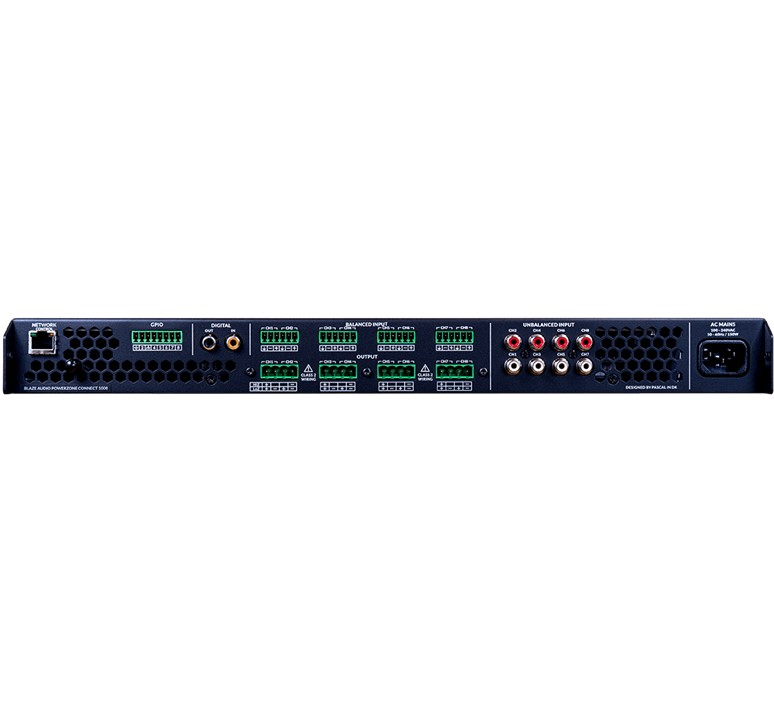

Blaze PowerZone Connect 1008 EU 8x 125W 8 kanaals installatie DSP versterker 4-16 Ohm & 70V/100V

Productbeschrijving

The PowerZone Connect 1008 is a solid, reliable, full rack, DSP amplifier with network connection for easy configuration and control.
Its network can be wired or wireless and allows access to the PowerZone Control web app’s system setup and audio configuration menu.
From here you can manage sound zones, inputs/outputs, update firmware, import speaker pre-sets and access many professional EQ settings configuration takes only a few minutes and can even be set up from your phone’s browser.

Features:
– more power
– still connected
– 1U, full rack
– next level power with 8 channels up to 1000W total system power
– for bigger installs and larger locations
– a powerful extension to the PowerZone connect series of full matrix DSP amplifiers
– with the same set-up and configuration via the same PowerZone Control web app
– connect via the amps Wi-Fi, or direct via the network port
– use any device and any browser
– even set-up from your phone
– connect to the system with PowerZone Control
– configure the complete system input sources & output channels
– set up sound Zones, EQ, routing and more
– smart & connected means you can update new features with downloadable firmware updates
– install speaker EQ files, back up and restore the system settings
– GPIO interface enables adding of any standard remote control (potentiometer)
– connect to smart automation controllers with our 3rd Party drivers
– link multiple amps via S/PDIF (master/slave)
– Pascal’s UMAC Class D amplifier technology is inside
– with market proven ultra-reliable amplifier modules

https://ui.blaze-audio.com/#/dashboard

Specificaties

– total system power 1000W
– 8x 125W 4/8 Ohm|
– 4x 250W 70/100V
– powershare (up to) across all channels 4x 250W
– power consumption 300W
– dimensions 44 x 440 x 319mm
– weight 3,8kg
– output circuitry UMAC class D full bandwidth PWM modulator with ultra-low distortion
– output voltage 45Vrms (S.E) – 70/100V (Hi-Z)
– signal to noise-ratio > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
– THD+N (typical) < 0,05 % (20 Hz - 20 kHz, 8 Ohm load, 3 dB below rated power)
– frequency response 20 Hz – 20 kHz (+0/-0,25 dB (8 Ohm load, 3 dB below rated power)
– protection circuits short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
– power supply UREC universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
– operating voltage/frequency 100-240V, 50-60Hz
– operating temperature 0 – 40C
– standby consumption < 0,5 W (Energy Star & ErP 1275/2008/EC compliant)
– power ratings 1% THD @ 120VAC and 230VAC
