Audac TMP-40 FM tuner module voor XMP-44 NIET MEER LEVERBAAR

Prijs op aanvraag
Audac TMP-40 FM tuner module voor XMP-44 NIET MEER LEVERBAAR

Artikelnummer: TMP40

Mail ons voor meer informatie

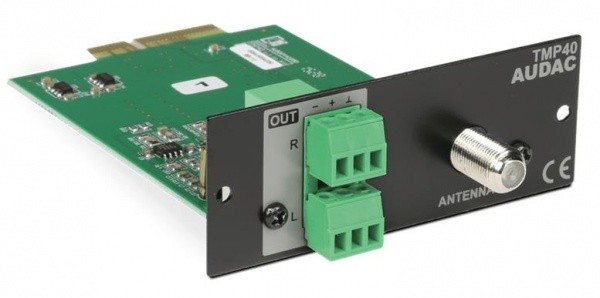

The TMP40 is a tuner with worldwide FM band support featuring SourceCon modular technology.
This unique technology guarantees true plug & play implementation to any compatible device.
When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration.
The TMP40 provides access to a wide variation of radio stations while guaranteeing a high-quality audio reproduction.
Station selection can be done manually or automatically, while up to 10 preferred channels can be internally stored and recalled.
Radio station information carried by RDS can be retrieved, while other functions such as mono/stereo switching (FM) always guarantee the best possible audio clarity.
Besides the signal output level which is user configurable, the traffic announcement volume can be individually set which guarantees the best intelligibility in specific requiring applications.
Signal reception strength can be retrieved from the module and indicated on the graphical interface of the controlling device.
The antenna input is implemented by an F-type connector on its panel, allowing connection of the included antenna cable or any other external antenna using 75 Ohm coaxial cabling.
The balanced stereo line output is connected through two 3-pin terminal block connections.



Technical Info:
– SourceCon interface kaart
– type F antenne aansluiting 75 Ohm
– FM bereik (-10 dB) 64 – 108 MHz, 87,5 – 108 MHz
– gevoeligheid (1W/1m) -100 dBm
– SN 42 dB
– THD+N (@ 1 kHz) < 0,1%
– frequentie bereik (+/- 3 dB) 30 Hz – 15 kHz
– overspraak (@ 1 kHz) 42 dB
– gebalanceerde stereo uitgang (3-P Euro Terminal Block (Pitch – 3.81 mm)
– niveau +8 dB – -55 dB
– vermogen 0,5 W
– afmetingen 87 x 34.5 x 114 mm (W x H x D)
– gewicht 0,071 kg
– montage SourceCon interface card slot
